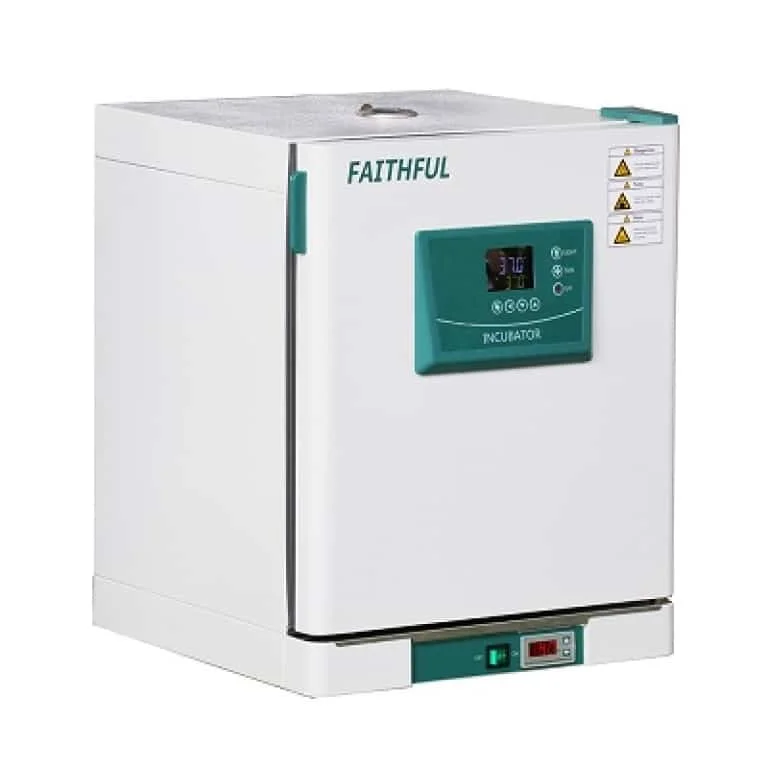

Incubator Digital 45L

DH45L incubator, , LCD screen temp range: RT+5-70C, with LED light, UV lamp, fan function and digital independent temp limiter.

Uses:

It is applied in industrial and mining enterprise, food processing industry, agriculture, biochemistry and medicine industry for bacteria and microorganism culturing.

Characteristics:

1. The double door structure adopts high quality glass, easy to observe samples, the outdoor with magnetic strip is easy to be opened and closed, good sealing, open door power-off function.

2. Standard lights, UV lamps, with breeze circulation fan,

3. Independent temperature limiter: imported mechanical temperature limiter, set the workroom limited temperature.

4.with function of cutting off UV lamp by open door.

Main Parameters:

Model		DH45L	DH65L	DH125L	DH210L
Cycle Mode		Breeze circulation
Function	Tem. Range	RT+5-65℃
	Tem. Resolution Ratio	0.1℃
	Tem. Motion	±0.5℃
	Tem. Uniformity	±0.8℃
Structure	Inner Chamber	Mirror stainless steel
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Insulation layer	Polyurethane
	Heater	Mica electrothermal film
	Power Rating	0.35kW	0.45kW	0.6kW	0.7kW
	Exhaust hole	φ28mm top(with function of test hole)
Controller	Tem. control mode	PID Intelligent
	Tem. setting mode	Touch button setting
	Tem. display mode	Measuring temperature: LCD upper row; Setting temperature: the lower row
	Timer	0-9999 min (with timing wait function)
	Operation function	Fixed temperature operation, timing function, auto stop.
	Additional funciton	Breeze circle fan,LED Floodlight, UV lamp ,Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory
	Sensor	PT100
Safety device		Mechanical independent temperature limiter, over temperature sound-light alarm
Specification	Inner Chamber size(WLH)(mm)	350350350	400350450	500450550	600580600
	Exterior size (WLH)(mm)	525480620	575480720	675580820	775710870
	Packing size (WLH)(mm)	605572775	655572875	755672975	8558021025
	Volume	45L	65L	125L	210L
	Shelf number	7	9	13	14
	Load per rack	15kg
	Shelf space	35mm
	Supply(50/60HZ)Current rating	AC220V/1.1A	AC220V/1.1A	AC220V/2.3A	AC220V/2.7A
	NW/GW (kg)	27/30	32/35	45/49	58/63
Accessory	Shelf	2
	Shelf frame	4
optional accessories		Shelf, USB interface, printer, recorder, External Communication, remote control, wireless SMS alarm

Weight	28 kg
