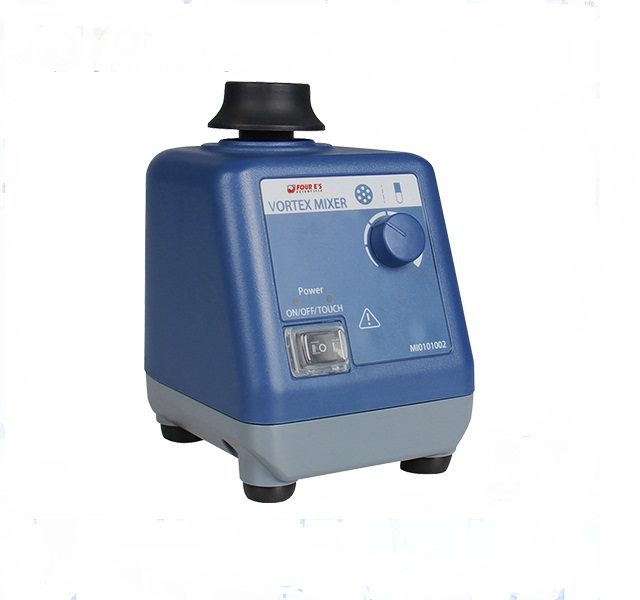

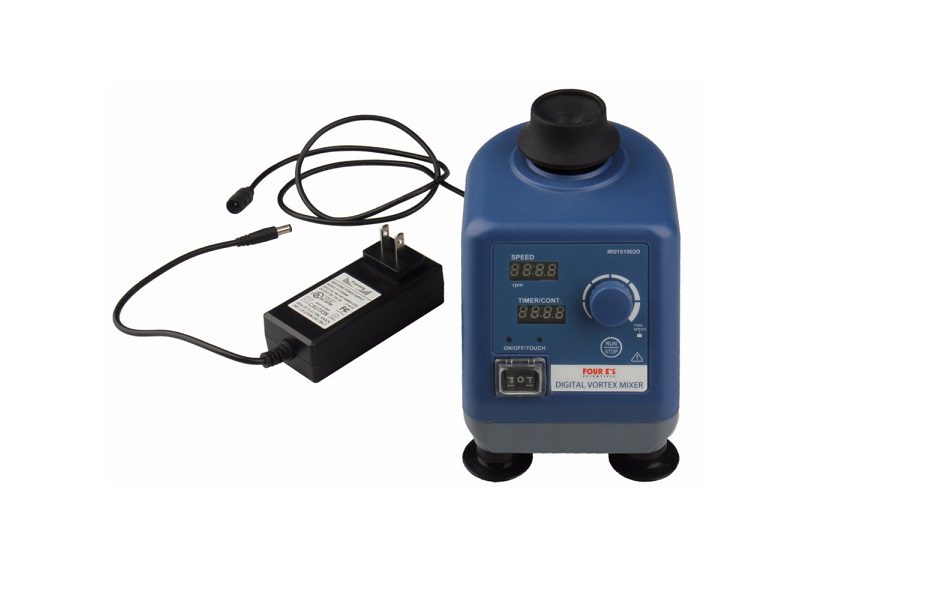

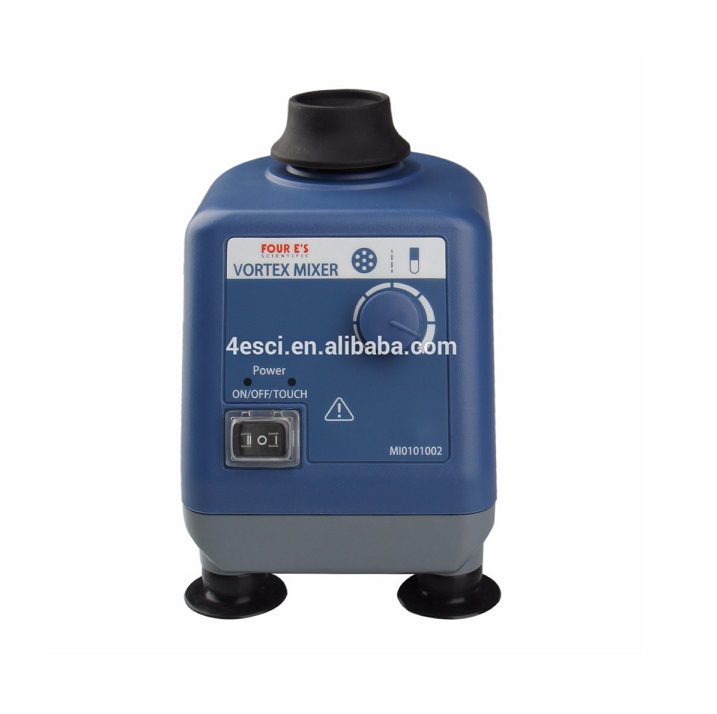

Vortex Mixer

Vortex Mixer

Features

LED display for easy reading of time and speed

Wide speed range of 0-3000rpm

Orbital diameter of 6mm

Touch mode, timer mode and continuous mode are available

Brushless motor and sturdy iron/aluminum casting base

Low operation voltage (12V) for full protection

Excellent mixing capability can make full 50ml containers mix within 3 seconds

Perfect dynamic balance design can eliminate any movement in mixing

Various applications with different interchangeable attachments

Power supply is CE, cULus, CCC, SAA and FCC certified

Specifications

• Model: MI0101002D Vortex Mixer
• Operation Mode: Continuous / touch operation
• Type of movement: Orbital
• Orbital diameter: 6mm
• Speed range: 0-3000rpm
• Speed display: LED digital
• Permissible ambient temperature: 5 – 40 ��C
• Permissible relative humidity: 80%
• Protection class according to DIN EN 60529: IP 21
• Voltage: 200 – 240 / 115 / 100 V compatible
• Frequency: 50/60 Hz
• Motor rating input: 30W
• Motor rating output: 15W
• Dimensions (W x H x D): 107x146x166m
• Weight: 3kg

Accessory

• Part No.: Description
• MI0101002-31: Test Tube Attachment, 54 x ��6mm, used with MI0101002-14
• MI0101002-32: Test Tube Attachment, 18 x ��10mm, used with MI0101002-14
• MI0101002-33: Test Tube Attachment, 12 x ��12mm, used with MI0101002-14
• MI0101002-34: Test Tube Attachment, 8 x ��16mm, used with MI0101002-14
• MI0101002-35: Test Tube Attachment, 8 x ��20mm, used with MI0101002-14
• MI0101002-36: Microtiter plate attachment, used with MI0101002-14
• MI0101002-14: Universal top plate
• MI0101002-37: Erlenmeyer flask attachment 100-250ml, used with MI0101002-14
• MI0101002-13: Standard top

Product Show
