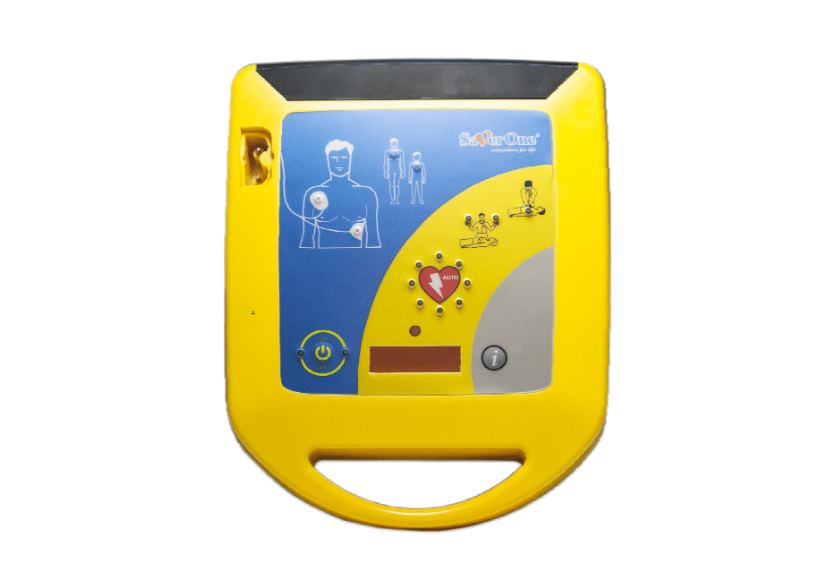

The AED Saver 1 is a fully automatic external defibrillator (AED) engineered to deliver safe, effective, and rapid treatment during sudden cardiac arrest situations. It analyzes heart rhythm, determines whether a shock is required, and automatically delivers the appropriate energy level – reducing hesitation and human error in critical moments.

Defibrillation & Performance

The AED Saver 1 uses an Adaptive Biphasic Truncated Exponential (BTE) waveform, which adjusts shock delivery according to the patient��s chest impedance for optimal effectiveness. It offers multiple shock protocols, with factory defaults including:

Adult Standard: 150J, 200J, 200J escalating
Adult Power: 200J, 250J, 360J escalating
Pediatric: 50J fixed (standard or power mode)

The device analyzes heart rhythm in 4-15 seconds, charges in ��9 seconds with a new battery, and operates within an impedance range of 20-200 ohms. It meets strict international sensitivity (97%) and specificity (99%) standards under IEC/EN 60601-2-4.

User-Friendly Operation

Designed for both trained professionals and lay rescuers, the AED Saver 1 features:

Two simple buttons: ON/OFF and Shock, plus an ��i�� information button
Clear flashing icons guiding the rescuer through each step
Visual and audible prompts, including service and battery alerts
Status LED indicator and battery gauge display

Battery Options

The AED Saver 1 supports both disposable and rechargeable batteries:

Disposable Li-SOCl�� Battery (SAV-C0903):

Up to 300 rescue cycles at 200J or 200 cycles at 360J
Up to 35 hours of ECG analysis
5-year shelf life when stored
4-year lifespan once installed (with daily self-tests)

Rechargeable Li-ion Battery (SAV-C0011):

Up to 250 shocks at 200J or 160 shocks at 360J
21 hours of ECG analysis
Recharges in 2.5 hours with charger station (SAV-C0014)
Recommended charging at least every 4 months

Defibrillator Pads

Adult pads (SAV-C0846): For patients over 8 years or >25 kg
Pediatric pads (SAV-C0016): For patients under 8 years or <25 kg
Pre-gelled, self-adhesive, disposable pads
Cable length: 120 cm
Shelf life: 30 months

Data & Event Recording

Internal memory stores up to 6 hours of ECG and rescue events
Optional removable SD card (2GB records up to 100 hours)
Exports detailed self-test logs and multimedia rescue files
Compatible with Saver View Express data management software

Durability & Environment

Built for real-world emergency conditions, the AED Saver 1 operates reliably in:

Operating temperature: 0��C to 55��C
Storage temperature: -40��C to 70��C (without battery)
Humidity: 10% to 95% non-condensing
IP54 rated: Splash-proof and dust-protected
Drop-tested to 1 meter per IEC standards

Fully compliant with:

EU Medical Device Directive 93/42/CEE Class IIb
IEC/EN 60601 medical device standards
Electromagnetic compatibility (IEC/EN 61000-4-2)
Shock and handling endurance standards
